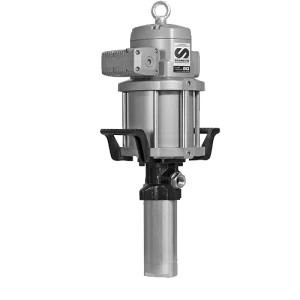

PumpMaster 60 6:1

Double-acting, air-operated, high flow and high pressure, heavy duty oil pumps for transferring or dispensing large volumes of oils. Built in port for optional pressure relief valve 609 007 for 6:1 & 609 008 for 12:1.

Fluids Handled

  • Synthetic and mineral based oil
  • Transmission fluid
  • Hydraulic oil
  • Gear lube

Part No.:

537 631 - PM60 6:1 Universal stub pump, flange mounted

Markets Served:

Marine, In-Plant, Large Fleets, Construction equipment maintenance, Mining equipment maintenance, Very Large auto and truck dealers, Mass Transit Maintenance, Railroad

Product Specifications
6:1
9.25 gpm (35 l/min)
26.5 gpm 100 l/min)
20-170 psi (1.5-12 bar)
1,020 psi (72 bar)
6" (150 mm)
4" (100 mm)
39 scfm (1.100 NL/min)
1/2" NPTF
1 1/2" NPTF
3/4" NPTF
Cast Iron, Aluminum, Nickel, Steel, NBR, Polyurethane
80 dB
Stub pump with bung
3-4
525' (160 m)
Heavy Duty High Delivery

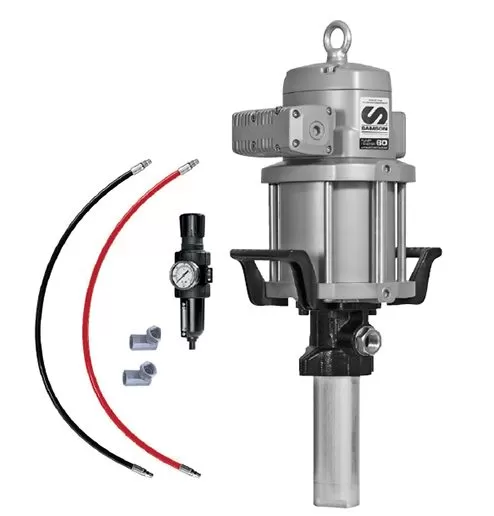

PumpMaster 60 12:1

Double-acting, air-operated, high flow and high pressure, heavy duty oil pumps for transferring or dispensing large volumes of oils. Built in port for optional pressure relief valve 609 007 for 6:1 & 609 008 for 12:1.

Fluids Handled

  • Synthetic and mineral based oil
  • Transmission fluid
  • Hydraulic oil
  • Gear lube

Part No.:

537 131 - PM60 12:1 Universal stub pump, flange mounted

Markets Served:

Marine, In-Plant, Large Fleets, Construction equipment maintenance, Mining equipment maintenance, Very Large auto and truck dealers, Mass Transit Maintenance, Railroad

Product Specifications
12:1
5.3 gpm (20 l/min)
17 gpm 65 l/min)
20-170 psi (1.5-12 bar)
2,040 psi (144 bar)
6" (150 mm)
4" (100 mm)
41 scfm (1.150 NL/min)
1/2" NPTF
1 1/2" NPTF
3/4" NPTF
Cast Iron, Steel, NBR, Polyurethane, Hard chromed steel
80 dB
Stub pump with bung
3-4
800' (250 m)
Heavy Duty High Performance
