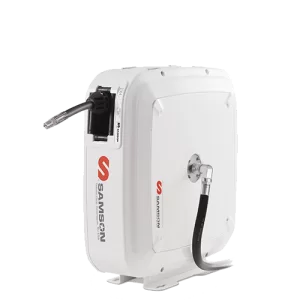

507 Series Low Pressure

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Fluids Handled

Part No.:

507 101 30' x 3/8" NPTM
507 104 30' x 1/4" NPTM
507 121 50' x 3/8" NPTM
507 122 50' x 1/2" NPTM
507 124 50' x 3/8" NPTM

Markets Served:

Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes

Product Specifications
  • Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
  • Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
  • Fully ported shaft and swivel.
  • Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
  • Large latching area for easier operation.
  • Position-able mounting brackets to accommodate any method of mounting.
  • Two large lateral service windows facilitate common maintenance operations.
  • Hose reels with hose include 30″ inlet hose.
30', 50'
1/2", 3/8"
3/8" NPTM, 1/2' NPTM
300 psi

507 Series Low Pressure DEF

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Fluids Handled

Part No.:

507 702 30' x 1/2" BSPPM
507 722 50' x 1/2" BSPPM

Markets Served:

Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes

Product Specifications

• Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Positionable mounting brackets to accommodate any method of mounting.
• Two large lateral service windows facilitate common maintenance operations.
• Hose reels with hose include 30″ inlet hose.

30', 50'
1/2"
1/2" BSPPM
300 psi

507 Series Medium Pressure

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Part No.:

507 202 30' x 1/2" NPTM
507 222 50' x 1/2" NPTM

Markets Served:

Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes

Product Specifications

• Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Positionable mounting brackets to accommodate any method of mounting.
• Two large lateral service windows facilitate common maintenance operations.
• Hose reels with hose include 30″ inlet hose.

30', 50'
1/2"
1/2" NPTM
2,000 psi

507 Series High Pressure

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Fluids Handled

Part No.:

507 300 30' x 1/4" NPTM
507 321 50' x 3/8" NPTM

Markets Served:

Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes

Product Specifications

• Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Positionable mounting brackets to accommodate any method of mounting.
• Two large lateral service windows facilitate common maintenance operations.
• Hose reels with hose include 30″ inlet hose.

30', 50'
1/4", 3/8"
1/4" NPTM
5,000 psi, 4,000 psi

507 Series High Pressure, Water up to 200°

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Fluids Handled

Part No.:

507 421 50' x 3/8" NPTM

Markets Served:

Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes

Product Specifications

• Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Positionable mounting brackets to accommodate any method of mounting.
• Two large lateral service windows facilitate common maintenance operations.
• Hose reels with hose include 30″ inlet hose.

50'
3/8"
3/8" NPTM
2,400 psi

507 Series Waste Oil Suction

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Part No.:

507 503 20' x 5/8" NPTM

Markets Served:

Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes

Product Specifications

• Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Positionable mounting brackets to accommodate any method of mounting.
• Two large lateral service windows facilitate common maintenance operations.
• Hose reels with hose include 30″ inlet hose.

20'
5/8"
1/2" NPTM
2,000 psi
