MC8 Series OG Oval Gear Mechanical Dispense Valve

SAMSON mechanical metered control valves are used at the end of hose assembly for measured dispensing of lubricants and antifreeze solutions in tough, intensive use applications.

Fluids Handled

  • Synthetic and mineral based oil
  • Transmission fluid
  • Gear Oil
  • Hydraulic oil and fluids
  • ATF

Part No.:

365 861 - Hose end meter and handle with no outlet
365 866 - 60º rigid with quarter turn non-drip tip
365 864 - Flexible outlet with 90º angled tube & quarter turn non-drip tip
365 867 - Formable outlet with quarter turn non-drip tip
365 868 - Formable outlet with quarter turn narrow non-drip tip

Markets Served:

Fleet service, Lube Trucks, Mining equipment maintenance, Car and Truck Dealerships, Fast Lube and Maintenance Shops

Product Specifications

• Reliable Performance – Extensively and rigorously field tested
• High precision machined measuring chamber – Tight tolerances, quality gears, and stainless steel shaft eliminate the need for calibration to adjust for fluid viscosity
• Rough TPE boot – Surrounds the meter for even greater durability
• 6-digit totalizer – Resettable partial reading up to 9,999 with a non-resettable 6 digit totalizer. Batch readings measure in quarts and totalizer measures in gallons.

8 gal/min (30 l/min)
1,000 psi (70 bar)
1/2" NPT(F)
1/2" NPT(F)
+/- 1%
Acetal / Aluminum/ Stainless steel / NBR / Zinc plated steel / TPU / Polyamide

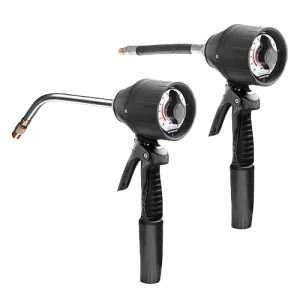

MC8 Series Rotary Piston Mechanical Dispense Valve

Samson mechanical metered control valves are used at the end of the hose assembly for measured dispensing of lubricants and anitfreeze solutions in tough, intensive use applications.

Fluids Handled

  • Synthetic and mineral based oil
  • Gear Oil
  • Hydraulic oil and fluids
  • ATF
  • Antifreeze solutions

Part No.:

365 805 - Flexible outlet with auto turn non-drip tip
365 806 - Formable outlet with quarter turn non-drip tip
365 802 - 60º Rigid outlet with quarter turn non-drip tip
365 826 - Formable outlet with quarter turn non-drip tip
365 803 - Flexible outlet with auto non-drip tip
365 804 - Formable outlet with quarter turn non-drip tip
365 801 - 60º Rigid outlet with quarter turn non-drip tip
365 824 - Formable outlet with quarter turn non-drip tip

Markets Served:

Railroad, Fleet service, Lube Trucks, Mining equipment maintenance, Car and Truck Dealerships, Fast Lube and Maintenance Shops, Mass Transit Maintenance

Product Specifications

• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• Fully mechanical register.
• Simple and easy to read dial includes 5-digit totalizer
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• The MC8 uses the CV11 SERIES control handle. This handle is flange coupled to eliminate the use of adapters and eliminate leaks.

8 gal/min (30 l/min)
1,450 psi (100 bar)
1/2" NPT(F)
1/2" NPT(F)
+/- 0.65%
Aluminum / Zinc alloy / Stainless steel / NBR / Brass / Steel / TPU / Polyamide

MC8P Series Rotary Piston Mechanical Preset Dispense Valve

Samson mechanical preset metered control valves allow filling crankcases, engines and other lubricants reservoirs.

Fluids Handled

  • Synthetic and mineral based oil
  • Gear Oil
  • Hydraulic oil and fluids
  • ATF

Part No.:

365 817 - Rigid outlet with semiautomatic non-drip tip
365 813 - Rigid outlet with semiautomatic non-drip tip
365 811 - Rigid outlet with semiautomatic non-drip tip

Markets Served:

Fleet service, Lube Trucks, Mining equipment maintenance, Truck Dealerships, Mass Transit Maintenance, Railroad

Product Specifications

• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• The reset mechanism incorporates a safety clutch for preserving the preset mechanism in case the knob is turned in the wrong direction.
• Mechanical shut-off mechanism. High wear and stress resistant shut off mechanism.
• Simple and easy to read dial includes 5-digit totalizer
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• CV11 SERIES Control valve is flange coupled to eliminate the use of adaptors and eliminate leaks.

8 gal/min (30 l/min)
1,450 psi (100 bar)
1/2" NPT(F)
1/2" NPT(F)
+/- 0.65%
Aluminum / Zinc alloy / Stainless steel / NBR / Brass / Steel / TPU / Polyamide
