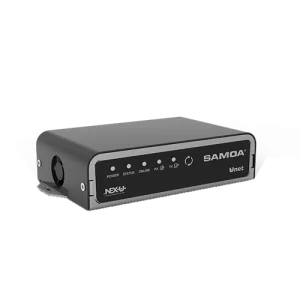

U·net includes a powerful 2.4 GHz processor and 4 GB RAM. It controls the system functions and it manages the wired and wireless communication between the NEX·U·® components.

It has two CAN bus ports (in/out) for wired communications and an ethernet port that allows U·net to connect to an existing Wi-Fi® network or to create a dedicated Wi-Fi® network.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

U·track is a powerful web based software package that gives you full control of fluid usage and inventory. It is a web based software that allows multi-user applications.

All PCs or tablets in the same network and in the same location can have access to U·track. U·track can work using IOS, Windows or Linux operating systems.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

U·dat allows system access to technicians either though a PIN code or using a RFID card.

• U·dat includes a 7″ full color graphics display and a complete QWERTY keypad.
• U·dat supports CAN bus cable communications, that transmits data and the power to open the solenoid valves in the system. Cabling is easy using “plug-and-play” type connectors.
• U·dat includes the transformer required to simultaneously open 8 solenoid valves.
• U·dat also supports Wi-Fi® data communication with other system components.
• U·dat requires 110 – 240 V power supply.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

• Dispensing Meter Handle with Wireless communication.
• Complete handheld system access Keypad with full transaction control
• Fully integrated Meter Handle
• Solenoid Valve automatically shuts off once the preset amount is reached.

U·vision+ includes a six-buttons keypad and it can replace the U·dat keypad for data entry in the system as it allows the following operations:

• User access through PIN enter.
• Scroll through existing open job orders to select the one corresponding to each operation or enter the job order number (digits only).
• Enter the volume of fluid to be dispensed.
• Confirm fluid type and transaction.

U·vision+ has a backlit display connected using Bluetooth® with a U·valve, U·meter+ or U·count and it displays the following parameters:

• Hose reel (fluid outlet number and fluid dispensed type).
• Battery life and Bluetooth® signal strength.
• Volume delivered and operation progress.
• U·valve solenoid valve open or closed.

U·vision+ is powered with 4 “AA” 1.5 V alkaline batteries.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

U·vision Hand-held display module to fit a Samoa oil control handle. Includes a backlit display connected via Bluetooth® with a U·valve, U·meter+ or U·count module and it displays the following parameters:

• Hose reel (fluid outlet number and fluid dispensed type).
• Battery life and Bluetooth® signal strength.
• Volume delivered and operation progress.
• Solenoid valve open or closed.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

Remote, high visibility, LED display that shows the volume delivered through various U·valves (no simultaneous operation supported). U·view supports Wi-Fi® and hard wired communication.

U·view requires hard-wired connection (data and power) to a U·dat keypad or to a 110 – 240 V AC power supply using a 24 V DC external transformer (U·power or U·power+).

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

U·valve combines, in a compact unit, a high accuracy pulse meter, a solenoid valve and a large cleanable fluid screen filter with the electronic module required to control the meter and valve operation and to communicate with other system components.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

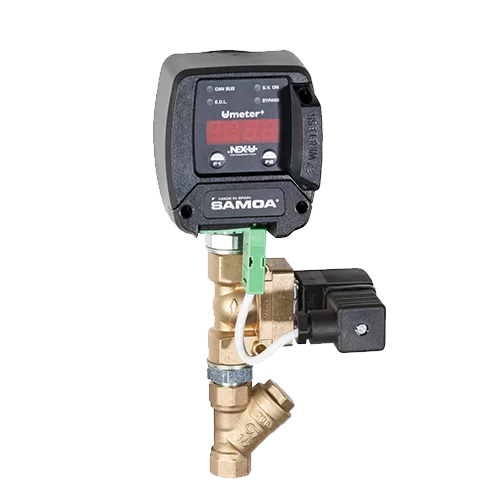

High accuracy compact pulse meter including the electronic module required to control the meter and valve operation and to communicate with other system components through CAN bus.

• With an LED display showing the U·meter number assigned in the system, four colored LED lights that show the U·meter operation for diagnosis and two buttons for system configuration.

• Equipped with fast connection in/out CAN bus terminals.
• Available in different materials and sizes to match different applications.

U·meter+ includes Bluetooth® connection to a U·vision or a U·vision+ module.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

High accuracy compact pulse meter including the electronic module required to control the meter and valve operation and to communicate with other system components through CAN bus.

• With an LED display showing the U·meter number assigned in the system, four colored LED lights that show the U·meter operation for diagnosis and two buttons for system configuration.

• Equipped with fast connection in/out CAN bus terminals.
• Available in different materials and sizes to match different applications.

U·meter+ includes Bluetooth® connection to a U·vision or a U·vision+ module.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

U·count Fluid control module includes a high visibility LED display and the software required to control any U·pulser or U·pulser+ with the rest of the NEX·U·® system components.

The LED display shows the U·valve number assigned in the system and four color LED lights show the operation of the valve for diagnosis and two buttons for system configuration.

U·count supports CAN bus hard wired communication that transmits data and power required to open the solenoid valve, Wi-Fi® for data communication with other system components and Bluetooth® to communicate with a U·Vision or U·Vision+ handle.

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions

Is a tank level monitor module capable of controlling two tanks. When mounted in a NEX·U·® system it keeps real time inventory and increases operation safety preventing air entering pumps when the tank is empty and overflow during clean oil delivery and in waste oil storage tanks. It can also be used to control the general air supply to the pumps.

U·tank has two independent graphic displays and level bars, each of them shows the inventory available in each tank. It also has a set-up keypad for inventory adjustment if required

Fluids Handled

• Synthetic and mineral based oil
• DEF
• Diesel
• Antifreeze solutions
