CV11 Series Dispense Valve
Samson control valves are used at the end of the hose assembly to dispense lubricants and antifreeze solutions.
Fluids Handled
- Synthetic and mineral based oil
- Gear Oil
- Hydraulic oil and fluids
- ATF
- Antifreeze solutions
Part No.:
363 116 - Oil valve with 60º rigid outlet and quarter turn non-drip tip
363 114 - Oil valve with flexible outlet with 90º tube and quarter turn non-drip tip

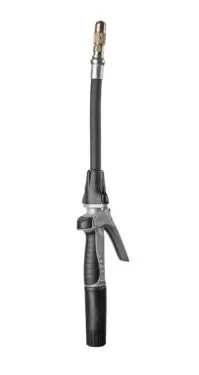

363 117 - Oil valve with formable outlet and quarter turn non-drip tip
363 118 - Oil valve with formable outlet and quarter turn narrow non-drip tip
Markets Served:
• Extensively and rigorously field tested; reliable performance.
• Aluminum body with light weight ergonomic design.
• Cam and piston valve design for minimum flow resistance.
• Large inlet swivel and inlet filter with large screen surface.
• Swivel and outlet covers.
• Safety latch must be depressed before product can be dispensed.
• Trigger can be locked open for dispensing large volumes.
• Wide selection of outlets available.
CV24 Series High Flow Dispense Valve
Samson large delivery control valves are used at the end of the hose assembly to dispense large volumes of lubricants and antifreeze solutions.
Fluids Handled
- Synthetic and mineral based oil
- Gear Oil
- Hydraulic oil and fluids
- ATF
- Antifreeze solutions
Part No.:
363 054 - Flexible outlet with semiautomatic non-drip tip
363 055 - 30º rigid with semiautomatic non-drip tip
363 056 - Flexible outlet with semiautomatic non-drip tip
Markets Served:
• Extensively and rigorously field tested; reliable performance.
• Heavy Duty aluminum pressure cast body to stand the toughest working conditions.
• High flow pressure balanced valve for comfortable use.
• Large port inlet swivel (1″ and 3/4″). Inlet filter with large screen surface.
• Safety guard avoids accidental openings.
• Trigger can be blocked open for dispensing large volumes.
• Outlets have 3/4″ BSP (M) connection thread and use a bonded seal washer to assure a leak free operation.
