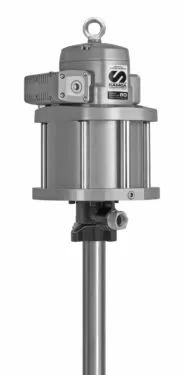

PumpMaster 80 35:1

High pressure and high volume double acting grease pump for use in transfer applications. These pumps can be used with all types of grease up to NLGI-2.

Pumps can be mounted to 120 lb and 400 lb open drums using an adequate drum cover and follower plate or to various types of grease bins and other containers. Grease bins normally have a 3” Cam Lock to which pump can be connected.

Fluids Handled

  • Grease up to NLGI-2

Part No.:

533 311 - PM80 35:1 400 lb drum, grease transfer pump
533 321 - PM80 35:1 120 lb keg, grease transfer pump
533 331 - PM80 35:1 35 lb pail, grease transfer pump

Markets Served:

Marine, Lube Trucks, Mining and Construction, Railroad & Mass transit vehicles, Industrial

Product Specifications
35:1
20 to 100 psi (1.5 - 7 bar)
35 scfm (1.000 Nl/min)
3,500 psi (245 bar)
8” (200 mm)
4” (100 mm)
35 lb/min (16 kg/min)
1/2” NPT(F)
1” NPT(F)
Cast iron / Hard chromed steel / Carbon steel / Zinc plated steel / NBR / Fillet PTFE / Polyurethane / POM
Pump noise level meets OSHA requirements at all recommended operating air pressures
